The 1-wide VerticalPLUS carrier extenders and cables are used to extend power and local peer bus signals from a left to a right 8-wide VerticalPLUS carrier and from a right to a left 8-wide VerticalPLUS carrier.
There are two types of 1-wide VerticalPLUS carrier extenders and cables:
- Left 1-wide carrier extender
- Right 1-wide carrier extender
- D-shell connector cable to extend power and LocalBus signals
- BNC connector cable to extend local peer bus signals for SIS systems
For SIS systems, the local peer bus must be terminated by 120 ohm BNC terminators at either the 1-wide carrier extender connected to the last 8-wide carrier or at a 4-wide SISNet Repeater carrier. The termination location depends upon the carrier configuration. Refer to the Installing Your DeltaV SIS™ Process Safety System Hardware manual for information on terminating SLS 1508 systems.

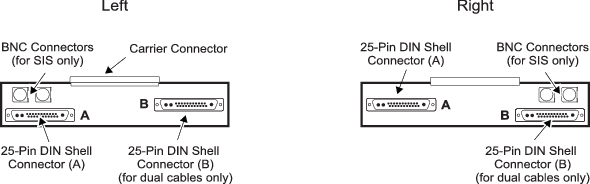

Left 1-Wide VerticalPLUS Carrier Extender
The Left 1-wide VerticalPLUS carrier extender connects to the bottom of a left 8-wide VerticalPLUS carrier or to the top of a right 8-wide VerticalPLUS carrier.
Right 1-Wide VerticalPLUS Carrier Extender
The Right 1-wide VerticalPLUS carrier extender connects to the bottom of a right 8-wide VerticalPLUS carrier or to the top of a left 8-wide VerticalPLUS carrier.
Cables for VerticalPLUS Systems
The 25 pin D-shell connector cable connects to the D-shell connectors labeled A on the 1-wide VerticalPLUS carrier extenders to extend power. Cable is available in the following lengths.
- 0.4 meters (1.3 feet)
- 0.8 meters (2.6 feet)
- 1.1 meters (3.6 feet)
- 1.5 meters (4.9 feet)
- 1.9 meters (6.2 feet)
The BNC connector cable connects black-to-black and white-to-white between 1-wide VerticalPLUS carrier extenders to extend the local peer bus for SIS systems. Refer to the Installing Your DeltaV SIS™ Process Safety System Hardware manual for information on the local peer bus.
