8-Wide Horizontal I/O Interface Carrier

Item	Specification
Capacity	Eight I/O cards with terminal blocks.
Maximum current	LocalBus (powers I/O cards): 8 A. For large systems use the LocalBus extenders to add more power. Bussed field power bus (shared by multiple I/O cards): 6.5 A @ 30 VDC or 250 VAC for each connection
LocalBus cable lengths	.87 m (2.8 ft) 1.2 m (3.9 ft) (standard) 1.53 m (5.0 ft)

Item

Specification

Capacity

Eight I/O cards with terminal blocks.

Maximum current

LocalBus (powers I/O cards): 8 A. For large systems use the LocalBus extenders to add more power.

Bussed field power bus (shared by multiple I/O cards): 6.5 A @ 30 VDC or 250 VAC for each connection

LocalBus cable lengths

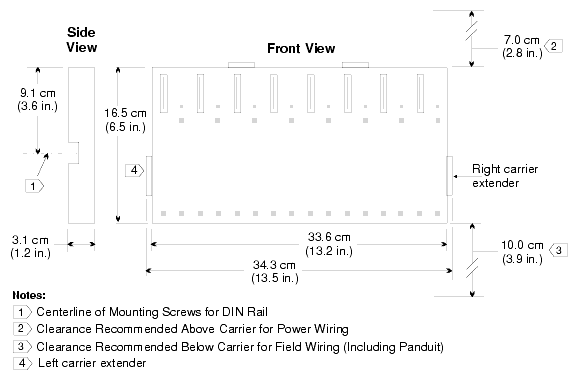

Figure: 8-Wide Horizontal I/O Interface Carrier Dimensions
