The DeltaV system supports the DI, 8-channel, 120 VAC, Isolated card and the Series 2 DI, 8-channel, 120 VAC, Isolated card in Simplex mode.
Installation Notes

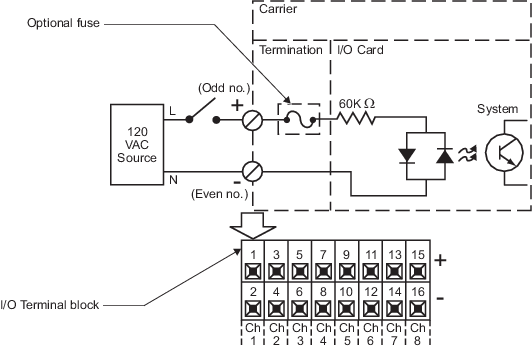

The I/O terminal block is recommended to provide screw terminations for field wiring for the DI, 8-channel, 120 VAC, Isolated card and the Series 2 DI, 8-channel, 120 VAC, Isolated card in Simplex mode. An optional terminal block is the Fused I/O block.
Specifications
| Item | Specifications |
|---|---|
| Number of channels | Eight |
| Isolation | Each channel is optically isolated from the system at 250 VAC and from other channels at 250 VAC. |
| Detection level for On | 84 VAC to 130 VAC(1) |
| Detection level for Off | 0 VAC to 34 VAC |
| Input load (contact cleaning) | 2 mA at 120 VAC |
| Input impedance | 60 kΩ |
| LocalBus current (12 VDC nominal), per card | |
| Field circuit power, per card | None |
| Optional fuse | 2.0 A |
| Mounting | Assigned slot of I/O carrier |
(1) Phase should be
considered when applying AC voltage to multiple input channels.
