The DeltaV system supports the DI, 8-Channel, 24 VDC, Isolated card and the Series 2 DI, 8-Channel, 24 VDC, Isolated card in Simplex mode.
Installation Notes

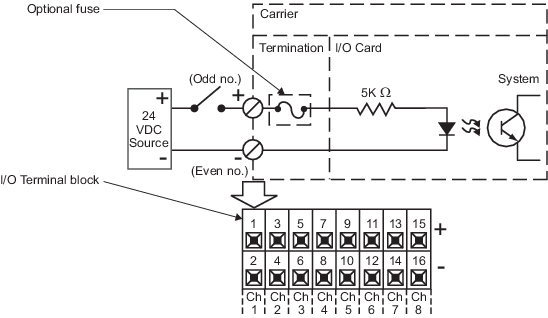

- The I/O terminal block is recommended to provide screw terminations for field wiring for the DI, 8-Channel, 24 VDC, Isolated card and the Series 2 DI, 8-Channel, 24 VDC, Isolated card in Simplex mode. Optional terminal blocks are the fused I/O terminal block and the 16-pin mass termination block.
- If you use a mass termination block with the DI, 8-Channel, 24 VDC, Isolated card, refer to the termination block specifications for the input rating for each block. Those specifications might be more restrictive than the specifications listed in the following table.
