DeltaV RM100 Base Smart Switches and Media Modules

Specifications

The DeltaV RM Smart Switches consist of four types of base switches and, depending upon the switch type, up to two pluggable media modules. The media modules provide a variety of pluggable media options. Table: RM Media Modules describes the media modules. The RM-100 Base Smart Switch-RP supports redundant input power. The RM Smart Switches can be mounted on a 19 inch rack or on a wall.

Table: DeltaV RM Base Smart Switches
Model Type
RM100-Base Smart Switch
  • 2, gigabit Ethernet combo ports
  • 8, fast Ethernet ports
  • 2 sockets for media modules for an additional 8 or 16 ports
RM100-Base Smart Switch-RP
  • 2, gigabit Ethernet combo ports
  • 8, fast Ethernet ports
  • 2 sockets for media modules for an additional 8 or 16 ports

Redundant input power.

RM100-8TX
  • 8, 10/100Mbit twisted pair ports with RJ45 connectors
  • 2, 10/100/1000Mbit twisted pair ports with RJ45 connectors
  • 2, 100/1000Mbit SFP-based ports

This is a fixed-configuration switch; no additional media modules can be added to it.

Note

Either the 10/100/1000Mbit twisted pair ports or the SFP ports can be used. Both port types cannot be used at the same time.

RM100-24TX
  • 24, 10/100Mbit twisted pair ports with RJ45 connectors
  • 2, 10/100/1000Mbit twisted pair ports with RJ45 connectors
  • 2, 100/1000Mbit SFP-based ports

This is a fixed-configuration switch; no additional media modules can be added to it.

Note

Either the 10/100/1000Mbit twisted pair ports or the SFP ports can be used. Both port types cannot be used at the same time.

Table: Number of Slots and Connectable Network Segments for the DeltaV RM100 Smart Switches

Item

RM100 Base Smart Switch and Base Smart Switch-RP

RM100-8TX

RM100-24TX

Number of slots for 10/100Mbit media modules.(1)

2

0

2

Number of ports for gigabit connections.(2)

2

2

2

Maximum number of connectable 10/100Mbit network segments.

24

8

24

Maximum number of connectable gigabit network segments.

2

2

2

(1) Up to two modules can be installed in any combination of fiber and twisted pair for the RM100 Base Smart Switch and Base Smart Switch-RP.
(2) Up to 24 ports when all slots are filled.

Images

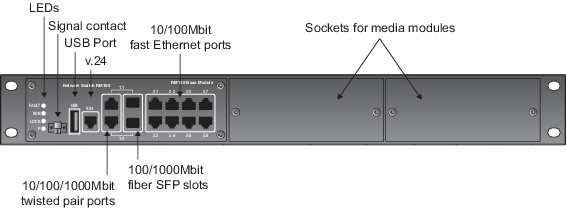

The following figure shows the RM base Smart Switch. In this image, the slots for the media modules are empty.

Figure: RM100 Base Smart Switch with no Media Modules

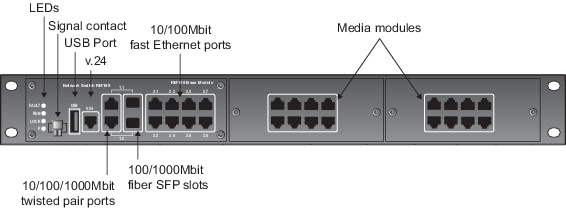

In the following figure, two eight port media modules are installed in the RM100.

Figure: RM Base Smart Switch with two Media Modules


Media Modules for RM base Smart Switches

The following table provides information on the media modules for the RM base Smart Switches.

Table: RM Media Modules
Model Type
RM100-EM-8TX 8, fast Ethernet twisted pair ports with RJ45 connectors
RM100-EM-8MM-FX 8, fast Ethernet multimode fiber ports with DSC connectors
RM100-EM-8SM-FX 8, fast Ethernet single mode fiber ports with DSC connectors
RM100-EM-8SFP 8, fast Ethernet SFP slots

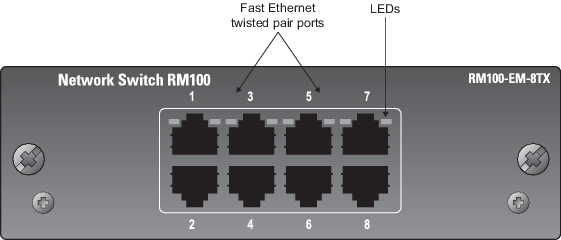

Figure: RM100-EM-8TX Media Module

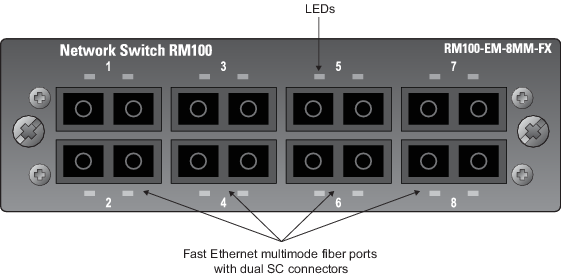

Figure: RM100-EM-8MM-FX Media Module


The RM100-EM-8SM-FX media module has the same physical layout as the RM100-EM-8-MM-FX shown in the following figure.

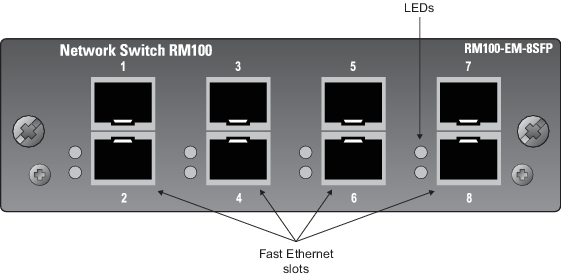

Figure: RM100-EM-8SFP Media Module
