Installation notes

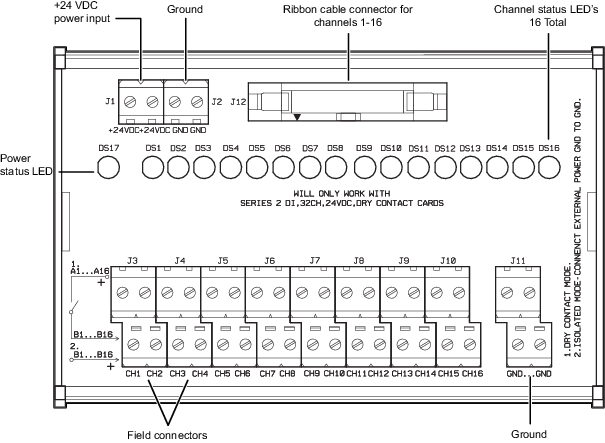

- The DI Mass Connection Board (single) provides an interface to the simplex Series 2 DI, 32-Channel, 24 VDC, Dry Contact card used with the M-series 40-Pin Mass Termination Block.
- Two DI Mass Connection Boards (single) (DI Mass Connection Solution (two)) are required to provide the interface to all 32 channels on the Series 2 DI, 32-Channel, 24 VDC, Dry Contact card.
- Two, 20-pin ribbon cables (one per board) connect between the DI Mass Connection Solution (two) and the 40-pin Mass Termination Blocks.
- Four screw terminals provide the connections for +24 VDC power and ground.

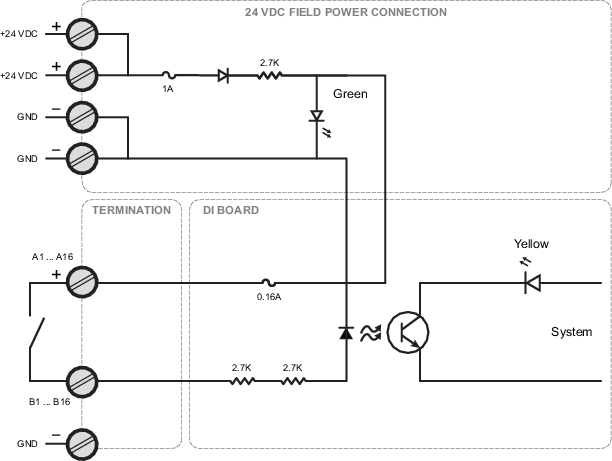

- For dry contact mode, connect your device to the screw terminals labeled A1 - A16 and to the screw terminals labeled B1-B16. Refer to Figure: Wiring for dry contact mode for a wiring diagram.

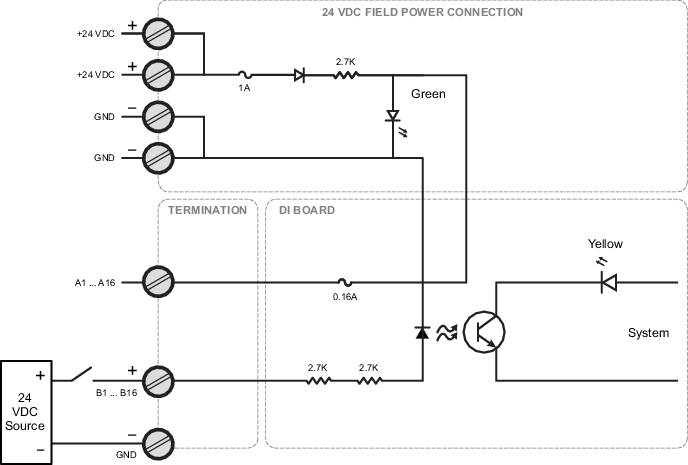

- For isolated power mode, connect your device to the even numbered screw terminals labeled B1-B16 and connect external ground to the ground bar. Refer to Figure: Wiring for isolated mode for a wiring diagram.
Specifications
|
Item |
Specification |
|---|---|
|
Field circuit power per board |
+24VDC ± 10% @ 75mA typical,100mA maximum |
|
Channel type |
Discrete Input, +24 VDC Dry Contact; detection on the - signal |
|
Number of channels |
16 |
|
Isolation |
The field wiring connections are galvanically isolated from the DI Card circuits and factory tested to 1000 VDC. No Channel-to-Channel isolation. |
|
Detection Level for ON |
> 2 mA @ 24 VDC |
|
Source impedance |
5 KΩ |
|
Source voltage |
+24 VDC Input Power, Current Limited with resettable fuse |
|
Dimensions |
|
