Specifications
| Item | Specification |
|---|---|
| Voltage rating | 30 VDC |
| Maximum Current | 200 mA |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Mounting | Assigned slots of I/O carrier. The lower slot number must be odd and the upper slot number must be the next higher even number. For example, slots 1 and 2, slots 3 and 4, and slots 5 and 6 are valid pairs. Slots 2 and 3 are not a valid pair. |

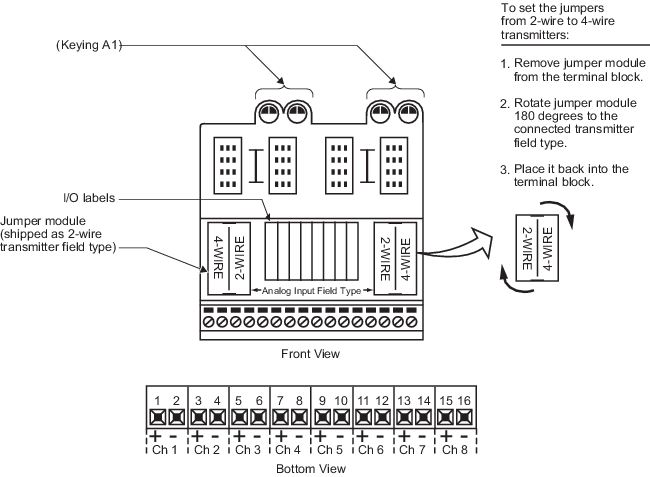

Figure: Redundant Analog Input Terminal Block (shown as shipped) shows the Redundant Analog Input terminal block. You can change between two and four wire connections in groups of four channels. The 2-wire and 4-wire jumpers on the left are for channels 1-4 and the 2-wire and 4-wire jumpers on the right are for channels 5-8.
For 4-wire transmitter applications, rotate the jumper module 180° until the Field Type arrows on the terminal block point to the 4-wire transmitter on the jumper.
