DeltaV Vertical Carriers > Installing VerticalPLUS Carriers > Extending LocalBus Power to Other Carriers

Extending power from right to left 8-wide VerticalPLUS carriers

This procedure is for an installation with up to 8 carriers.

Note

If a 4-wide SISNet Repeater carrier is installed on the top right, there is no need for a 1-wide carrier because power can be extended from the D-shell connectors on the SISNet Repeater carrier.

  1. Connect the left 1-wide VerticalPLUS carrier extender or SISNet Repeater carrier to the last 8-wide carrier on the right side (carrier 6) by sliding together the 96 pin connectors on the carriers.
  2. Connect the right 1-wide VerticalPLUS carrier extender to the first 8-wide carrier on the left side (carrier 7) by sliding together the 96 pin connectors on the carriers.
  3. Connect the 25 pin D-shell (male) connector on the extender cable to the D-shell connector labeled A on the right 1-wide carrier extender or SISNet Repeater carrier and fasten the retainer screws.
  4. Connect the 25 pin D-shell connector on the other end of the cable to the D-shell connector labeled A on the left 1-wide carrier extender and fasten the retainer screws.

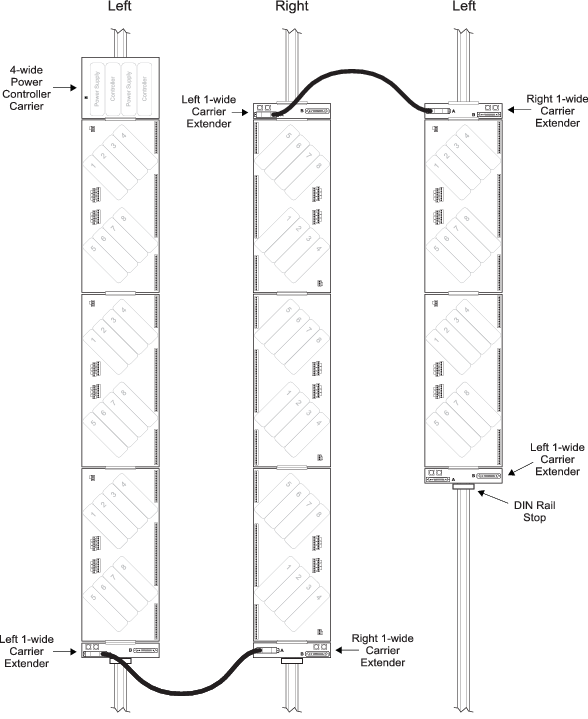

    Figure: Power Extended from a Left to Right Carrier and Right to Left Carrier
