The DeltaV automation system consists of the following components:
- One or more I/O subsystems
that process information from field devices
- One or more controllers that
perform local control and manage data and communications between the I/O
subsystem and the Control Network
- Power supplies
- One or more workstations
that provide a graphical user interface to the process
- A Control Network that
provides communication between system nodes

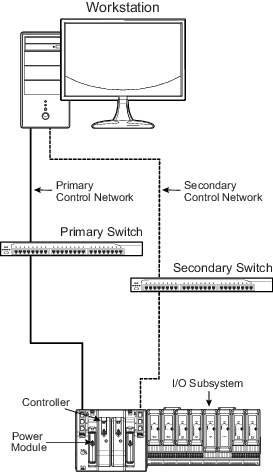

Figure: DeltaV System Overview Diagram
shows an overview diagram of the DeltaV system.
Figure: DeltaV System Overview Diagram
