DeltaV MD Base Smart Switches and Media Modules

Specifications

The DeltaV MD Smart Switches consist of the base switches, MD20 and MD30, and DeltaV media modules that plug into the base switches. The MD20 base Smart Switches have 8, 16, or 24, 10/100Mbit ports and the MD30 have 8, 16, or 24, 10/100Mbit ports and a gigabit slot. For both base Smart Switch types, a variety of pluggable DeltaV media modules provide the interfaces to the DeltaV Control Network in a variety of media types.

Note

The MD20 and MD30 Smart Switches consist of the base switch and the backplane. These items are not available separately. The base switch functions as the power supply and the backplane houses the switching circuits.

Table: DeltaV MD Base Smart Switches
Model	Type
MD20-8 MD20-8-ES	Up to 8, 10/100Mbit ethernet ports with additional modules
MD20-16 MD20-16-ES	Up to 16, 10/100Mbit ethernet ports with additional modules
MD20-24 MD20-24-ES	Up to 24, 10/100Mbit ethernet ports with additional modules
MD30-8 MD30-8-ES	Up to 8, 10/100Mbit ethernet ports with additional modules 2, gigabit ports
MD30-16 MD30-16-ES	Up to 16, 10/100Mbit ethernet ports with additional modules 2, gigabit ports
MD30-24 MD30-24-ES	Up to 24, 10/100Mbit ethernet ports with additional modules 2, gigabit ports

The ES versions of the MD20 and MD30 Smart Switches have an extended temperature range and conformal coating.

Table: DeltaV Media Modules for the MD20 and MD30 Base Smart Switches
Model	Type
MD4-2TX/SFP MD4-2TX/SFP-ES	2, gigabit multimode fiber SFP slots 2, gigabit, RJ45 twisted pair ports Note Either the twisted pair port or the fiber SFP slots can be used. Both cannot be used at the same time.
MD2-2FXM2 MD2-2FXM2-ES	2, 100BASE-FX fast ethernet ports over multimode fiber (SC connectors)
MD2-2FXS2 MD2-2FXS2-ES	2, 100BASE-FX fast ethernet ports over single mode fiber (SC connectors)
MD2-4TX1 MD2-4TX1-ES	4, 10BASE-T/100BASE-TX, fast ethernet twisted pair ports (RJ45 connectors)
MD2-4TX1-POE MD2-4TX1-POE-ES	4, 10BASE-T/100BASE-TX, fast ethernet twisted pair ports (RJ45 connectors) with Power over Ethernet (PoE)
MD3-2FXM2/2TX1 MD3-2FXM2/2TX1-ES	2, 100BASE-FX fast ethernet over multimode fiber ports (SC connectors) 2, 10BASE-T/100BASE-TX twisted pair ports (RJ45 connectors)
MD3-2FXS2/2TX1 MD3-2FXS2/2TX1-ES	2, 100BASE-FX fast ethernet over single mode fiber ports (SC connectors) 2, 10BASE-T/100BASE-TX twisted pair ports (RJ45 connectors)
MD3-4FXM2 MD3-4FXM2-ES	4, 100BASE-FX fast ethernet over multimode fiber ports (SC connectors)
MD3-4FXM4 MD3-4FXM4-ES	4, 100BASE-FX fast ethernet over multimode fiber ports (ST connectors)
MD3-4FXS2 MD3-4FXS2-ES	4, 100BASE-FX fast ethernet over single mode fiber ports (SC connectors)
MD3-2FXM4/2TX1 MD3-2FXM4/2TX1-ES	2, 100BASE-FX fast ethernet over multimode fiber ports (ST connectors) 2, 10BASE-T/100BASE-TX twisted pair ports (RJ45 connectors)
MD3-1FXS2/3TX1 MD3-1FXS2/3TX1-ES	1, 100BASE-FX fast ethernet over single mode fiber port (SC connectors) 3, 10BASE-T/100BASE-TX twisted pair ports (RJ45 connectors)

Images

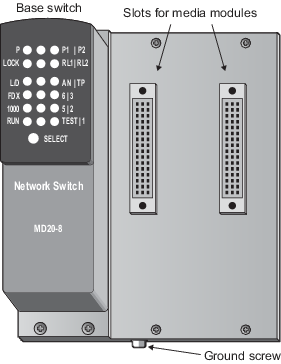

The following figure shows an MD20 8-port base Smart Switch. This switch has two 10/100Mbit slots for media modules. Various media modules are available with up to four ports per module.

Figure: MD20 8-Port Smart Switch

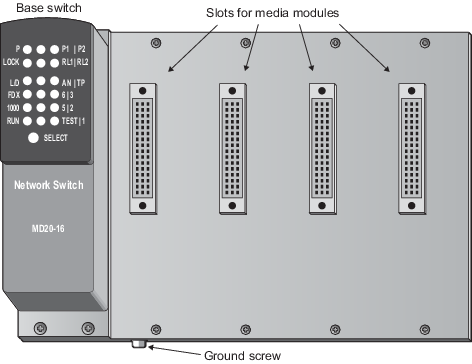

The following figure shows an MD20 16-port base Smart Switch. This switch has four 10/100Mbit slots for media modules. Various media modules are available with up to four ports per module.

Figure: MD20 16-Port Smart Switch

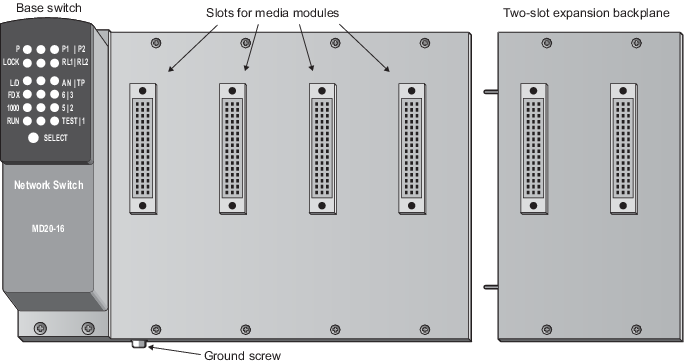

The MD20 16-port Smart Switch can be expanded to 24 ports in the field with a two slot expansion backplane or the MD20 24-port Smart Switch can be purchased as a single product.

Figure: MD20 Smart Switch with 24 Ports

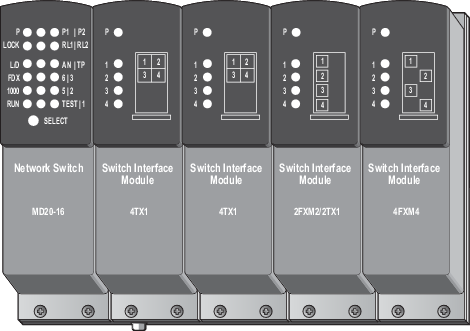

The following figure shows an MD20 16-port Smart Switch with four media modules installed.

Figure: MD20 16-Port Smart Switch with Four Media Modules

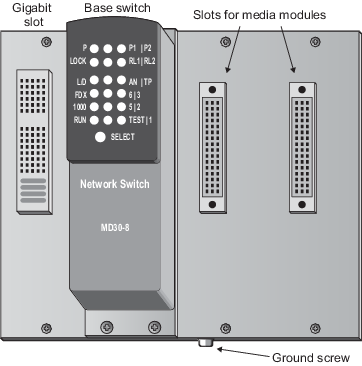

The MD30 Smart Switches have 8 or 16, 10/100Mbit ports and a gigabit slot to the left of the base switch. The following figure shows an MD30 8-port Smart Switch.

Figure: MD30 8-Port Smart Switch

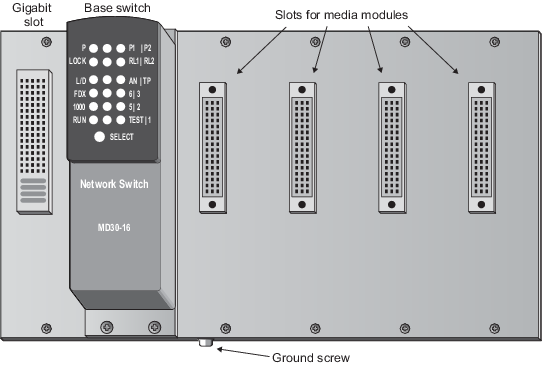

The following figure shows an MD30 16-port Smart Switch.

Figure: MD30 16-Port Smart Switch

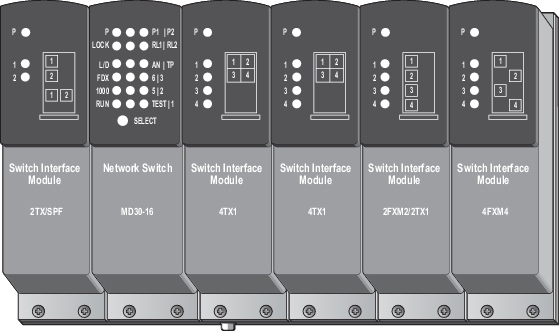

The following figure shows an MD30 16-port Smart Switch with five media modules. The media module to the left of the base switch has two gigabit ports.

Figure: MD30 16-Port Switch with Media Modules

The MD30 16-port Smart Switch, like the MD20 16-port Smart Switch, can be expanded in the field to 24 ports with a two slot expansion backplane or the MD30 24-port Smart Switch can be purchased as a single product.

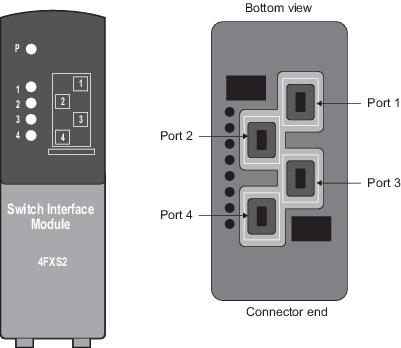

As shown in the following figure, an image on the front of the media module shows the media module’s port layout. This port layout is used by the MD3-4FXS2, MD3-4FXM4, and MD3-4FXM2 media modules

Figure: Port Layout for MD3-4FXS2, 4FXM4, and 4FXM2

The following figure shows the port layout for the MD2-2FXM2 and 2FXS2 media modules.

Figure: Port Layout for the MD2-2FXM2 and 2FXS2

The following figure shows the port layout for the MD3-2FXM2/2TX1, 2FXM4/2TX1, 1FXS2/3TX1, and 2FXS2/2TX1 media modules.

Figure: Port Layout for the MD3-2FXM2/2TX1, 2FXM4/2TX1, 1FXS2/3TX1, and 2FXS2/2TX1

The following figure shows the port layout for the MD4-2TX/SFP media module.

Figure: Port Layout for the MD4-2TX/SFP

The following figure shows the port layout for the MD2-4TX1 media module.

Figure: Port Layout for the MD2-4TX1

The following figure shows the port layout for the 4TX1-PoE media module.

Figure: Port Layout for the 4TX1-PoE
