Specifications
| Item | Specification |
|---|---|
| Input power (redundant) | +24 VDC ±10% at 2.75 A maximum |
| Output power | +12.25 VDC at 3.0 A maximum |
| Power dissipation | 3.25 W |

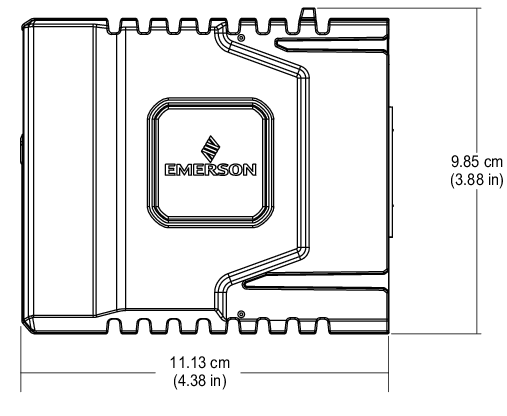

Figure: P-series Power Module dimensions

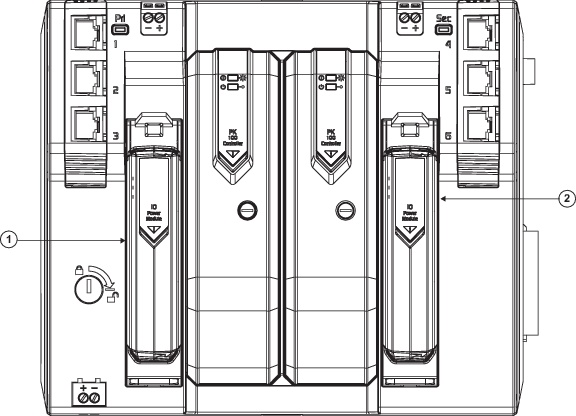

Figure: P-Series Power Module locator diagram
| Callout | Description |
|---|---|
|
Power Module
Provides power to connected I/O. |
|
Power Module
Provides power to connected I/O. |
