CHARMs Smart Logic Solver specifications

Installation notes

Redundant CHARMs Smart Logic Solvers (CSLS) install on the CHARMs Smart Logic Solver Carrier.
The CSLS receives 24 VDC input power from the CHARMs Smart Logic Solver Carrier.
The CSLS connects to the Local Safety Network through redundant Ethernet ports on the CHARMs Smart Logic Solver Carrier.
A physical keylock switch on the CHARMs Smart Logic Solver Carrier along with an unlock software function restricts how and when the CSLS can be unlocked for downloads and upgrades.

Table: CHARMs Smart Logic Solver specifications
Item	Specification
Input power requirement through the CSLS Carrier	24 VDC ±10% at 325 mA maximum for simplex; 575 mA maximum for redundant. CHARM power requirements are additional.
Ethernet connection through the CSLS Carrier	Redundant 10/100BASE-TX ports.
Heat dissipation	18 W maximum for a redundant CSLS node. Includes: 13 W for redundant CSLSs (7 W for simplex CSLS) 3 W for redundant Power Modules 1 W per Safety Network Port
Isolation	None. The CSLS is referenced to the incoming 24 VDC return.
Mounting	One or two slots on the CSLS Carrier.

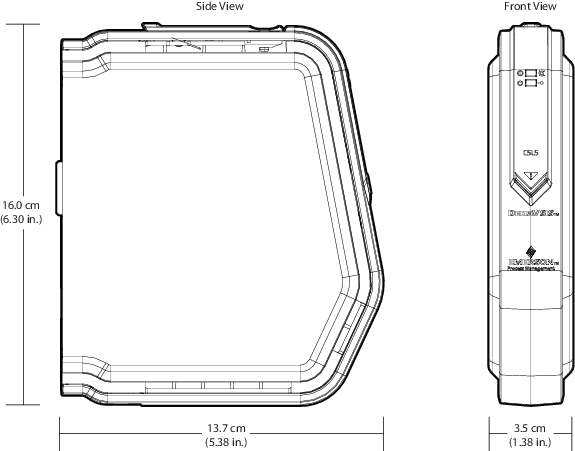

Figure: CHARMs Smart Logic Solver

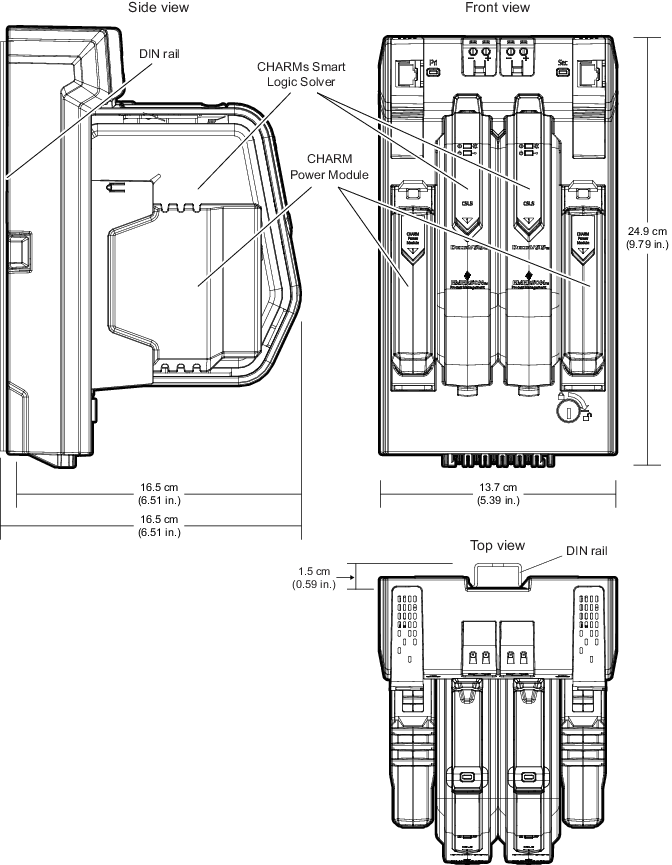

Figure: CHARMs Smart Logic Solvers on the carrier
