CHARMs Smart Logic Solver Carrier specifications

Installation notes

The CHARMs Smart Logic Solver Carrier installs on vertical T-type DIN rails.
Redundant CHARMs Smart Logic Solvers (CSLS) and redundant Power Modules plug into the slots on the CHARMs Smart Logic Solver Carrier. The CSLS and the Power Modules receive 24 VDC input power through the carrier. Refer to Figure: Powering the CHARMs Smart Logic Solver Carrier. The Power Modules generate 6.3 VDC power for the CHARMs.
The CHARMs Smart Logic Solver Carrier houses a primary and secondary Safety Network Port (SNP) for connections to the Local Safety Network. Each port has a port activity LED. The SNPs are removable. To remove a SNP, depress the button next to the SNP and push it out of the carrier.
A physical keylock switch on the CHARMs Smart Logic Solver Carrier along with an unlock software function restricts how and when the CSLS can be unlocked for downloads and upgrades.

Table: CHARMs Smart Logic Solver Carrier specifications
Item	Specification
Capacity	One or two redundant CSLS and one or two redundant Power Modules.
Input power (redundant)	+24 VDC ±10% at 12.5 A maximum
Output power to SIS CHARMs Baseplates	+24 VDC ±10% at 10 A maximum +6.3V DC at 4 A maximum
Redundant Ethernet connections (primary and secondary)	Copper twisted pair: 10/100BASE-TX with RJ45 connectors; full duplex operation.

Figure: CHARMs Smart Logic Solver Carrier dimensions

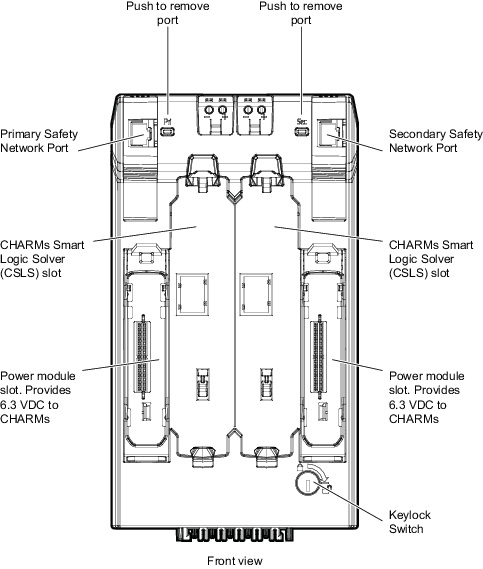

Figure: Front view of the CHARMs Smart Logic Solver Carrier

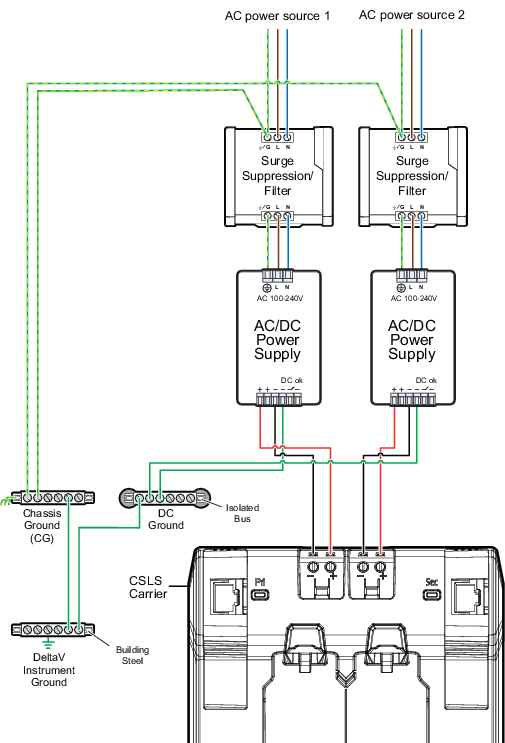

Figure: Powering the CHARMs Smart Logic Solver Carrier
