LS DI 230 VAC isolated CHARM specifications

Installation notes

When a CHARM Terminal Block is used, the input channel can be used as a conventional isolated input channel. You must install an external fuse on the line side, as shown in the wiring diagrams below with CHARM Terminal Blocks.
When a CHARM 3-Wire DI Fused Injected Power Terminal Block is used, the input channel can be used as a dry contact input channel.
The CHARM 3-Wire DI Fused Injected Power Terminal Block can be used to provide an additional connection point for 3-wire devices connected to this CHARM.
Although CHARMs can be installed in any location, it is good engineering practice to separate low voltage DC signals from high voltage AC signals. To ensure a safe working environment, it is recommended that you wire AC signals to a different enclosure from DC signals.

Table: LS DI 230 VAC isolated CHARM specifications
Item	Specification
Channel type	Discrete input: isolated 230 VAC
Detection level for On	>168 VAC
Detection level for Off	<68 VAC
Wetting current	1 mA at 230 VAC
Input impedance	240 kΩ (approximate)
Channel isolation	Input channel is optically isolated from the system at 250 VAC.
Frequency	50 / 60 Hz
Maximum input voltage	250 VAC
Input power requirements	Total power requirement: +24 VDC ±10% at 8 mA maximum : Input power from CSLS Power Modules: +6.3 VDC ±3% at 20 mA maximum +24 VDC input power: none
CHARM heat dissipation	0.40 W

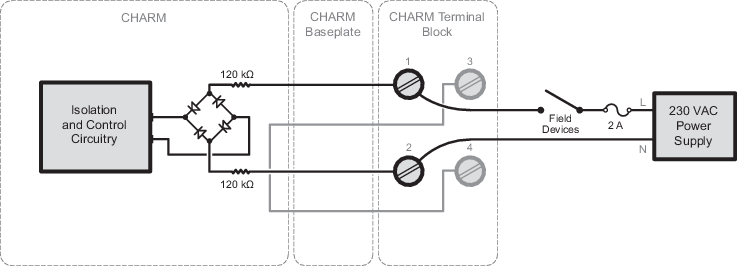

Figure: LS DI 230 VAC isolated CHARM wiring diagram with CHARM Terminal Block

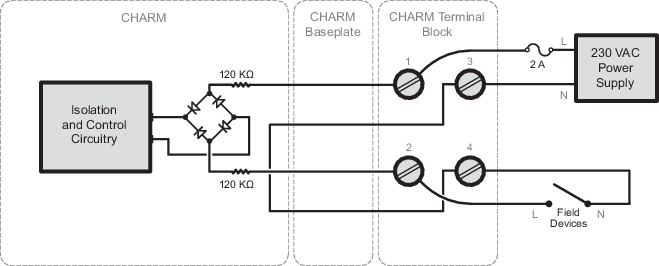

Figure: LS DI 230 VAC isolated CHARM wiring diagram for dry contact applications with CHARM Terminal Block

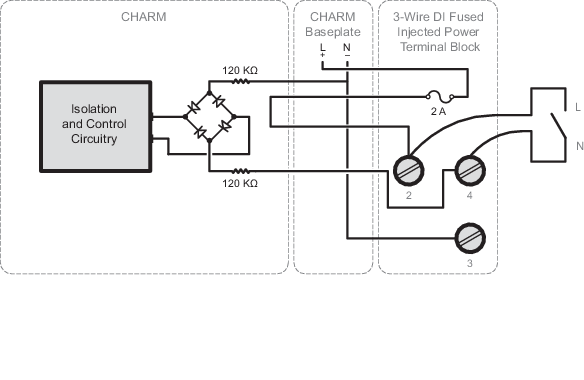

Figure: LS DI 230 VAC isolated CHARM wiring diagram for dry contact applications with CHARM 3-Wire DI Fused Injected Power Terminal Block

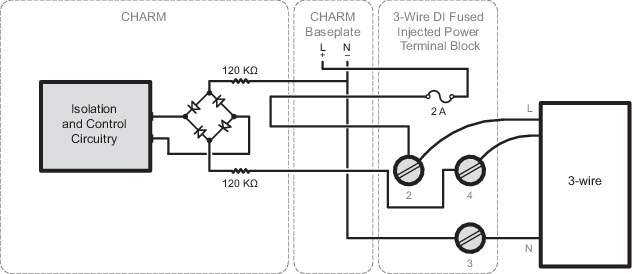

Figure: LS DI 230 VAC isolated CHARM wiring diagram for 3-wire applications with CHARM 3-wire DI Fused Injected Power Terminal Block
