CHARM Terminal Block specifications

Installation notes

• Each terminal block holds a single Logic Solver (LS) CHARM and provides the keying and field wiring for the LS CHARM.
• The CHARM Terminal Block's keying mechanism sets itself to match the inserted LS CHARM.
• To reset the keying mechanism, remove the CHARM Terminal Block from the CHARM Baseplate, flip the terminal block 180°, and use your fingers to push the two keying posts completely in so they are sub flush to the bottom face of the terminal block. Sub flush is the neutral position. You will hear a click when the posts are in the neutral position. When the posts are in the neutral position, the terminal block can receive a different LS CHARM type.
• The following LS CHARMs can use the CHARM Terminal Block:
  • LS AI 0-10 VDC Isolated
  • LS AI 4-20 mA HART
  • LS DI 24 VDC Isolated
  • LS DI 120 VAC Isolated
  • LS DI 120 VAC Isolated Plus CHARM
  • LS DI 230 VAC Isolated
  • LS DI 24 VDC Low-Side
  • LS DI NAMUR
  • LS RTD / Resistance Input
  • LS DO 24 VDC DTA
  • LS DO 24 VDC ETA

Specifications

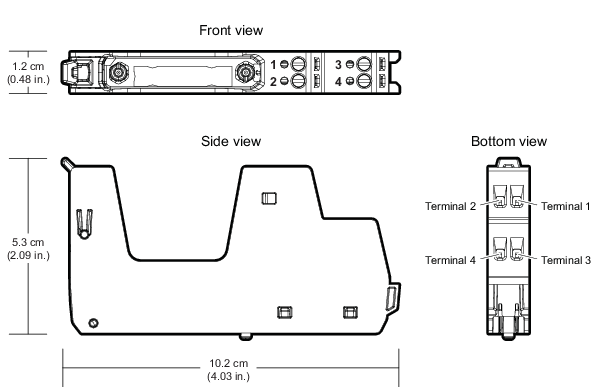

Front and side views and dimensions

Figure: CHARM Terminal Block
