LS DI 24 VDC isolated CHARM specifications

Installation notes

When a CHARM Terminal Block is used, the input channel can be used as a conventional isolated input channel.
When a CHARM 3-Wire DI Fused Injected Power Terminal Block is used, the input channel can be used as a dry contact input channel.
The CHARM 3-Wire DI Fused Injected Power Terminal Block can be used to provide an additional connection point for 2 and 3-wire devices connected to this CHARM.

Table: LS DI 24 VDC isolated CHARM specifications
Item	Specification
Channel type	Discrete input: isolated VDC
Detection level for ON	>10 VDC
Detection level for OFF	< 5 VDC
Wetting current	6 mA at +24 VDC
Output impedance	4 kΩ (approximate)
Channel isolation	Input is optically isolated and factory tested to 1000 VDC.
Input power requirements	Total power requirement: +24 VDC ±10% at 8 mA maximum : Input power from CSLS Power Modules: +6.3 VDC ±3% at 20 mA maximum +24 VDC input power: none
CHARM heat dissipation	0.32 W

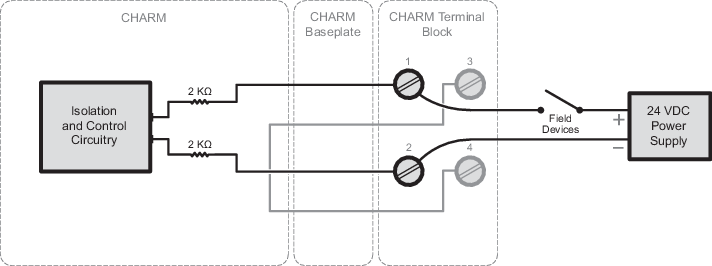

Figure: LS DI 24 VDC isolated CHARM wiring diagram with CHARM Terminal Block

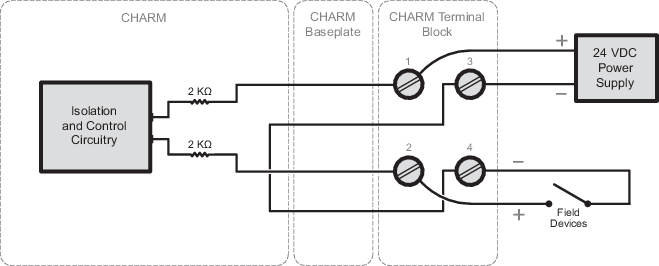

Figure: LS DI 24 VDC isolated CHARM wiring diagram for dry contact applications with CHARM Terminal Block

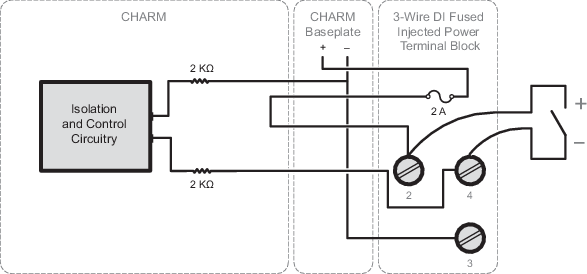

Figure: LS DI 24 VDC isolated CHARM wiring diagram for dry contact applications with CHARM 3-Wire DI Fused Injected Power Terminal Block

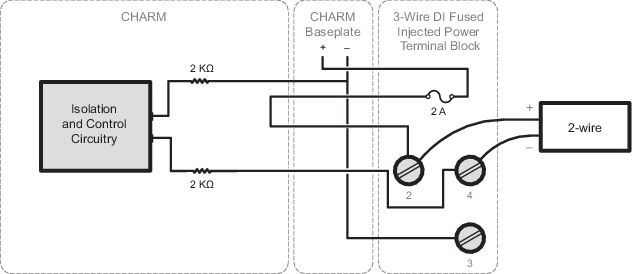

Figure: LS DI 24 VDC isolated CHARM wiring diagram for 2-wire applications with CHARM 3-Wire DI Fused Injected Power Terminal Block

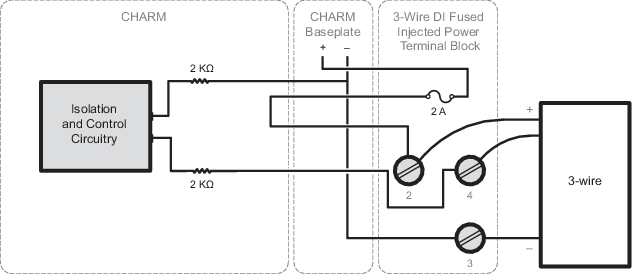

Figure: LS DI 24 VDC isolated CHARM wiring diagram for 3-wire applications with CHARM 3-Wire DI Fused Injected Power Terminal Block
