Safety Network Ports specifications

Installation notes

The CHARMs Smart Logic Solver Carrier houses a primary and secondary Safety Network Port (SNP) for connections to the Local Safety Network.
The SNPs are removable. To remove a SNP, depress the button next to the SNP and push it out of the carrier.

Table: Safety Network Port specifications
Item	Specification
Redundant Ethernet connections (primary and secondary)	Copper twisted pair: 10/100BASE-TX with RJ45 connectors; full duplex operation.
Input power provided by the controller	+5 VDC at 200 mA maximum
Heat dissipation	1 W

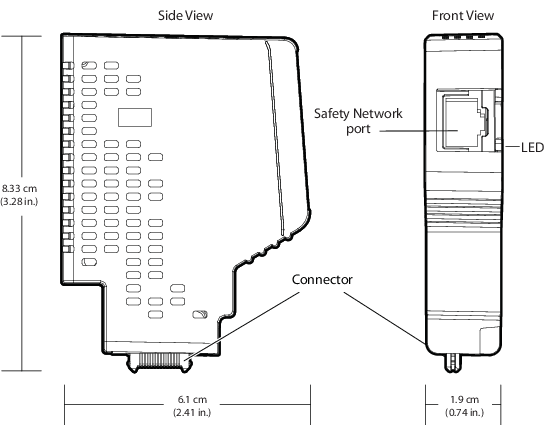

Figure: Safety Network Port
