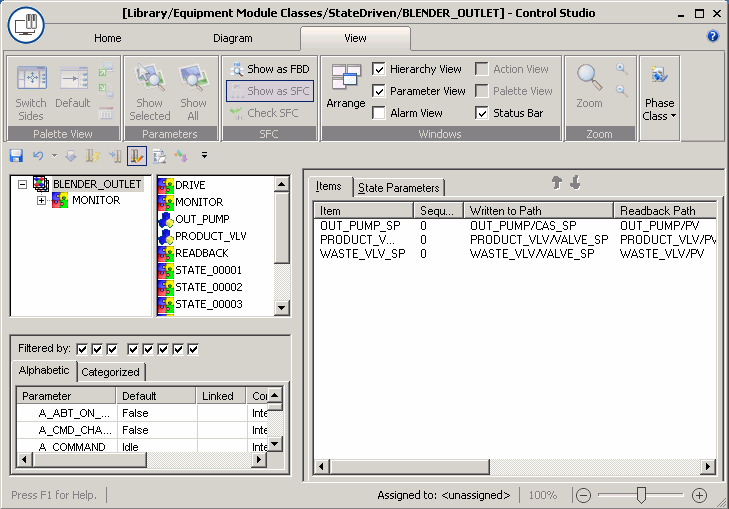

Open the BLENDER_OUTLET equipment module class in Control Studio. Note that it contains module blocks that represent OUT_PUMP, PRODUCT_VLV, and WASTE_VLV. The equipment module also contains composite blocks for DRIVE, MONITOR, READBACK, TARGET, and TARGET_REACHED which are default blocks created for all state-driven equipment module classes. In addition, it contains four composite blocks beginning with STATE that represent the items in the named set outlet_state.
The top right pane is used to configure the logic for the various states in the state-driven algorithm.
