The following figure shows the detail display for an alarm module.

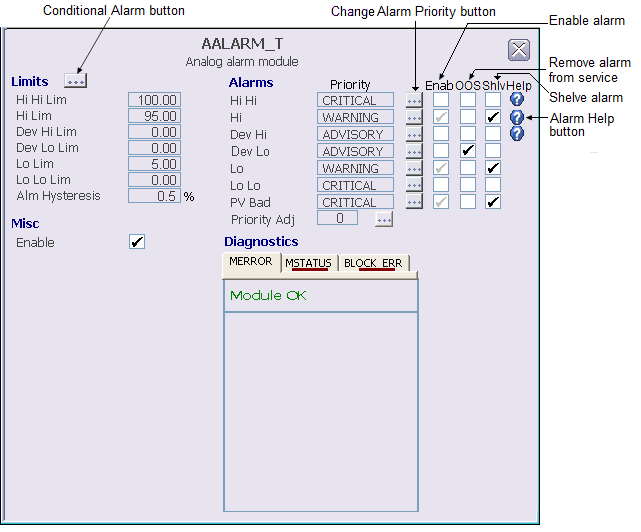

Figure: DeltaV Operate View of the Alarm Module Detail Display
(AALM_DT)
The alarm detail display provides you with access to frequently
modified parameters for an alarm module as well as status and diagnostics
information. It includes the following items:
Conditional Alarm button - Available when conditional
alarming is enabled. Displays a popup with the conditional alarming parameters.
Change the values of these parameters using the Conditional Alarm popup.
