PID loop detail display (LOOP_DT)

The information in this topic also applies to FFLP_DT and FLC_DT, which are very similar in appearance and function to the PID Loop Detail Display.

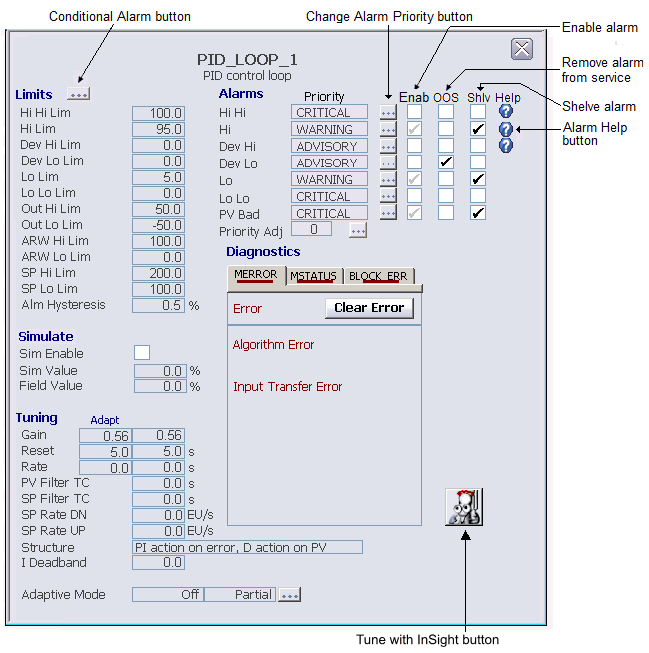

Figure: DeltaV Operate View of the PID Loop Detail Display (LOOP_DT)

The loop detail display provides you with access to frequently modified parameters for a loop module as well as status and diagnostics information. It includes the following items:

• Tune with InSight button - Press this button to start DeltaV InSight in the context of this module.
