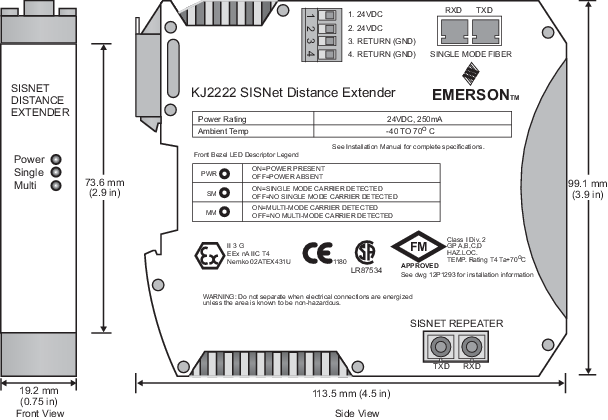

SISNet Distance Extender specifications

Multimode fiber port- Duplex SC

Single mode fiber port - Duplex LC

Multimode - 62.5 /125 µm ST type or 50/125 µm ST type

Single mode- 9/125 µm, 8.8/125 µm, 8.5/125 µm, 8.2/125 µm

Refer to the note about the conversion cable ends in Extend the remote peer ring with SISNet distance extenders.

Multimode - 14 dBm

Single mode - 0 dBm

Multimode

• 62.5 /125 µm - max attenuation 11 dB
• 50/125 µm - max attenuation 8 dB
• Wavelength 1300 nm

Single mode

• 9/125 µm - max attenuation 30.0 dB
• 8.8/125 µm - max attenuation 29.0 dB
• 8.5/125 µm - max attenuation 28.5 dB
• 8.2/125 µm - max attenuation 28.0 dB
• Wavelength 1310 nm

• Multimode - 2 km one way TxD to RxD
• Single mode - 60 km one way TxD to RxD

Note Actual lengths depend upon the quality of the fiber-optic cable and the connections.

Multimode (between SISNet Repeaters and SISNet Distance Extenders):SISNet Repeater RxD to SISNet Distance Extender TxD and SISNet Repeater TxD to SISNet Distance Extender RxD.

Single mode (between SISNet Distance Extenders): RxD of successor SISNet Distance Extender to TxD of predecessor SISNet Distance Extender.

DIN rail

19.2 VDC to 28.8 VDC @ 250 mA max

4-position screw terminal

Solid or Stranded

12 AWG maximum
