DI 8-channel 24 VDC isolated card specifications

Installation notes

The 8-channel terminal block is recommended to provide terminations for field wiring for the DI 8-channel 24 VDC isolated card. Optional terminal blocks are the Fused 8-channel terminal block and the 16-pin mass terminal block.
If you use a mass terminal block with the DI 8-channel 24 VDC isolated card, refer to the terminal block specifications for the input rating for each block. Those specifications might be more restrictive than the specifications listed in the following table.
This card requires an S-series controller.

Table: DI 8-channel 24 VDC isolated card specifications
Item	Specification
Number of channels	Eight
Detection level for On	> 10 VDC
Detection level for Off	< 5 VDC
Input impedance	5 kΩ
LocalBus current (12 VDC nominal), per card	75 mA typical 100 mA maximum
Field circuit power, per card	None
Isolation	Each channel is optically isolated from the system and from each other and factory tested to 1500 VDC.
Heat dissipation	3.1 W
Optional fuse	2.0 A
Mounting	Assigned slot of I/O carrier

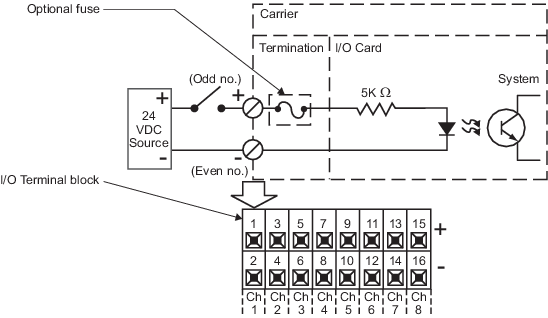

Figure: DI 8-channel 24 VDC isolated card wiring diagram
