| Number of channels
|
Eight
|
| Output range
|
2 VDC to 60 VDC
|
| Output rating
|
1.0 A (inrush 4.0 A for <100 ms; 6.0 A
for <20 ms)
|
| Off-state leakage
|
1.2 mA maximum
|
|
Configurable channel types
|
| Discrete Output
|
If FAIL_ACTION_MODE is Hold last value
(default): Output stays in last state submitted by the controller.
|
| If FAIL_ACTION_MODE is Go to configured
failure action mode: Output is driven to the configured faultstate value.
|
| Momentary Output
|
If FAIL_ACTION_MODE is Hold last value
(default): Output finishes current pulse.
|
| If FAIL_ACTION_MODE is Go to configured
failure action mode: Output is driven to the configured faultstate value and
the channel is re-configured as a latched output.
|
| Continuous Pulse Output
|
If FAIL_ACTION_MODE is Hold last value
(default): Output continues pulsing.
|
| If FAIL_ACTION_MODE is Go to configured
failure action mode: Output is driven to the configured faultstate value and
the channel is re-configured as a latched output.
|
| LocalBus current (12 VDC nominal), per card
|
- 100 mA typical
- 150 mA maximum
|
| Field circuit power, per card
|
None
|
| Isolation
|
Each channel is optically isolated from the
system and from each other and factory tested to 1500 VDC.
|
| Heat dissipation
|
4.2 W
|

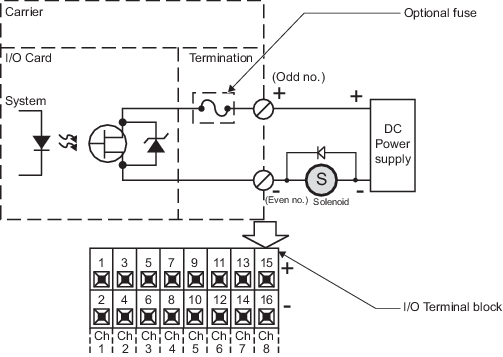

| Optional fuse
|
2.0 A (inrush 5.0 A for <10 ms at 0.1%
duty cycle)
|
| Mounting
|
Assigned slot of I/O carrier
|
