Installation Notes

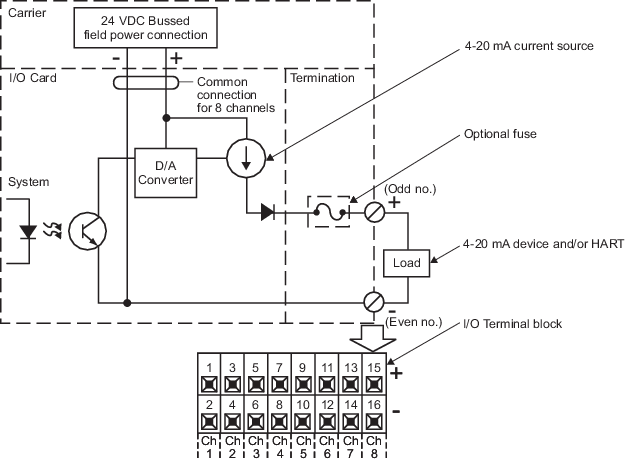

- The I/O terminal block is recommended to provide terminations for field wiring for the AO, 8-Channel, 4–20 mA, AO, 8-Channel, 4–20 mA, HART and the Series 2 AO, 8-Channel, 4–20 mA, HART cards in Simplex mode. Optional terminal blocks are the fused I/O block and the 16-pin mass termination block.

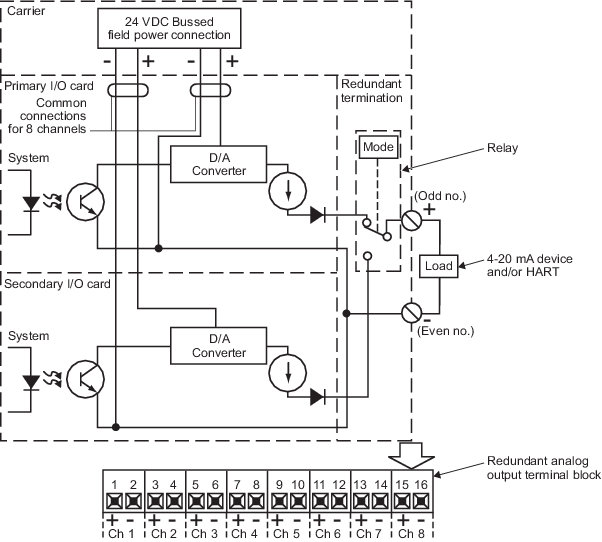

- The Redundant Analog Output terminal block is recommended to provide terminations for field wiring for the Series 2 AO, 8-Channel, 4–20 mA, HART card in Redundant mode.
- The open HART protocol layers digital information on the standard analog 4-20 mA process signal.
Specifications
| Item | Specifications |
|---|---|
| Number of channels | Eight |
| Isolation | Each channel is optically isolated from the system and factory tested to 1500 VDC. |
| Nominal signal range (span) | 4 to 20 mA |
| Full signal range | 1 mA to 23 mA |
| LocalBus current (12 VDC nominal), per card |
120 mA typical, 150 mA maximum Series 2 (for each card in Redundant mode only (1) :) |
| Field circuit power, per card | 300 mA maximum at 24 VDC (±10%) |
| Accuracy over temperature range |
0.25% of span (0 - 60°C) Series 2: |
| Resolution | |
| Output compliance | 20 mA at 21.6 VDC supply into 700 Ω load |
| Calibration | Information stored on card |
| Communications Support (only for version with HART) | |
| HART scan time | 600-800 ms (typical) per enabled channel |
| Optional fuse (Simplex mode only) | 2.0 A |
| Mounting | Assigned slot of I/O carrier |
(1) Double for a redundant pair.
