The SIMOCODE-DP module template is designed as a starting point for configuring a module that accesses diagnostic parameters for a Siemens SIMOCODE-DP motor. The diagnostic data can then be used in control logic, such as creating an alarm to signal the need for operator intervention.
Device diagnostic parameters

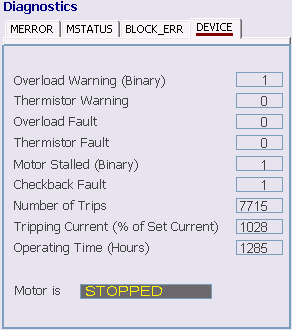

The SIMOCODE-DP module template uses the Motor and Valve Module Faceplate (DL_FP) faceplate and the Profi_SIMOCODE_dt detail display, which is functionally identical to the Motor and Valve Module Detail Display (DL_DTx) detail display, except that it creates an additional tab, named DEVICE, in the Diagnostics area of the detail display.
|
Parameter name |
Description |
|---|---|
|
OVERLOAD_WARNING |
Overload warning (binary) |
|
THERMISTOR_WARN |
Thermistor warning (binary) |
|
OVERLOAD_FAULT |
Overload fault (binary) |
|
THERMISTOR_FAULT |
Thermistor fault (binary) |
|
MOTOR_STALLED_FAULT |
Stalled motor fault (binary) |
|
CHECKBACK_FAULT |
Checkback fault (binary) |
|
NUM_OVERLOAD_TRIP |
Number of trips (enum) |
|
TRIPPING_CURRENT |
Tripping current as % of set current |
|
OPERATING_TIME |
Operating time in hours |
|
MOTOR |
"Motor is" status field containing the state name (PV_D) that corresponds to the actual process value; e.g. STOPPED |
